GSA · Grounding System Analysis

GSA

Design & Validate Safe Earthing Systems

GSA is the XGSLab module dedicated to earthing/grounding systems in low-frequency conditions. Model grids and electrodes, compute touch/step voltages, and verify compliance to IEEE/IEC/EN using multilayer soil models and realistic return paths.

Request Demo → Explore products →

Capabilities

What you can do with GSA

Fast, defendable grounding studies for substations, plants, renewables and rail.

Grid & Electrode Modelling

Buried meshes, rods, rings, foundations & earth plates
Touch/step voltages, GPR, current distribution
Bonding, transfer potentials & interface checks

Multilayer Soil & Measurements

SRA/SSA tools to fit 1–n layer soil models
Seasonal/resistivity variations and what-if cases
Improved accuracy for safety criteria

Standards & Reporting

IEEE Std 80, IEC/EN 50522, IEC 60479 checks
Mitigation (surface layers, gradient control)
Engineering-grade plots & compliance summaries

Scope & Technical Coverage

Area	Details
Geometry	Arbitrary meshes, interconnected grids, rods, plates, foundations, rings, shields, and connections to structures or third-party systems.
Soil Model	Uniform or multilayer soils derived from Wenner/Schlumberger tests; seasonal/resistivity scenarios; automated curve fitting.

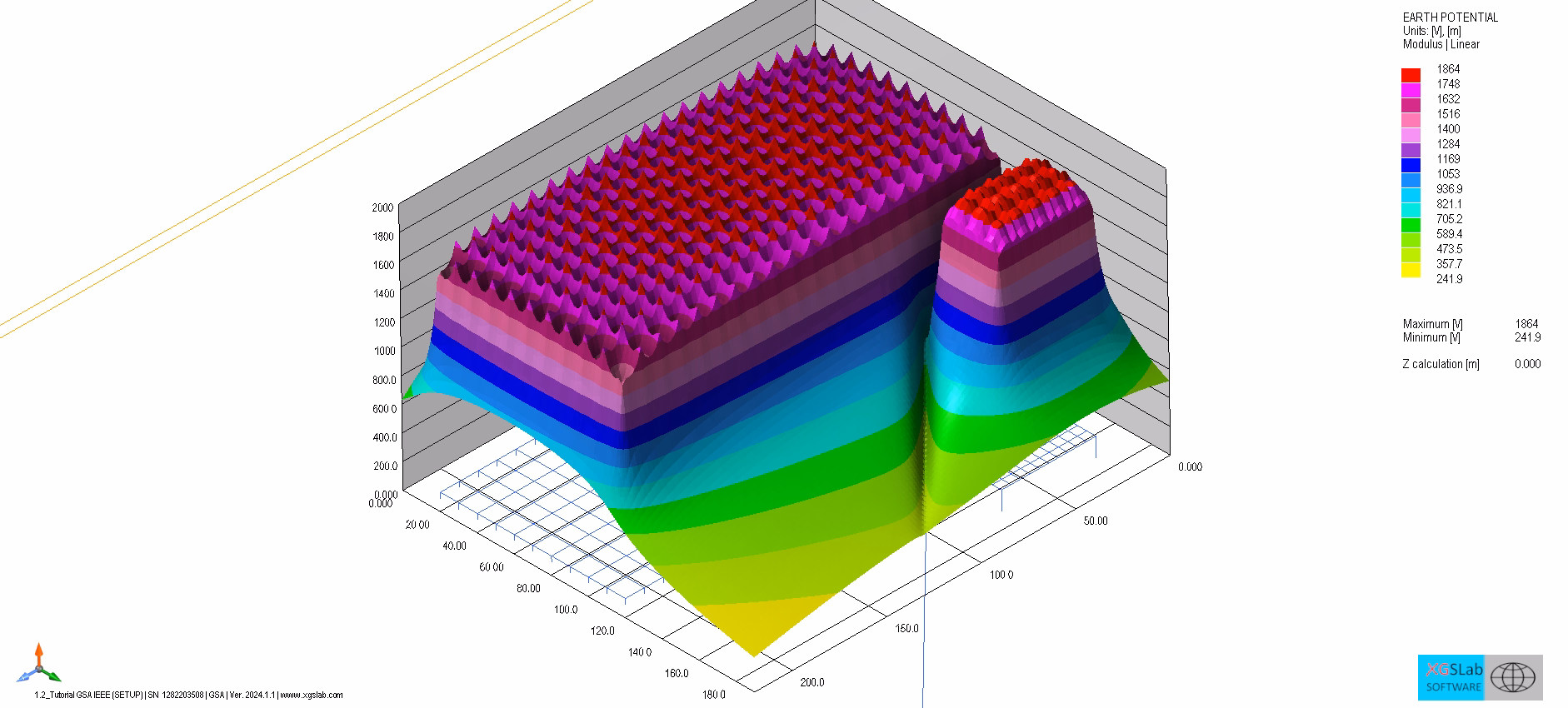

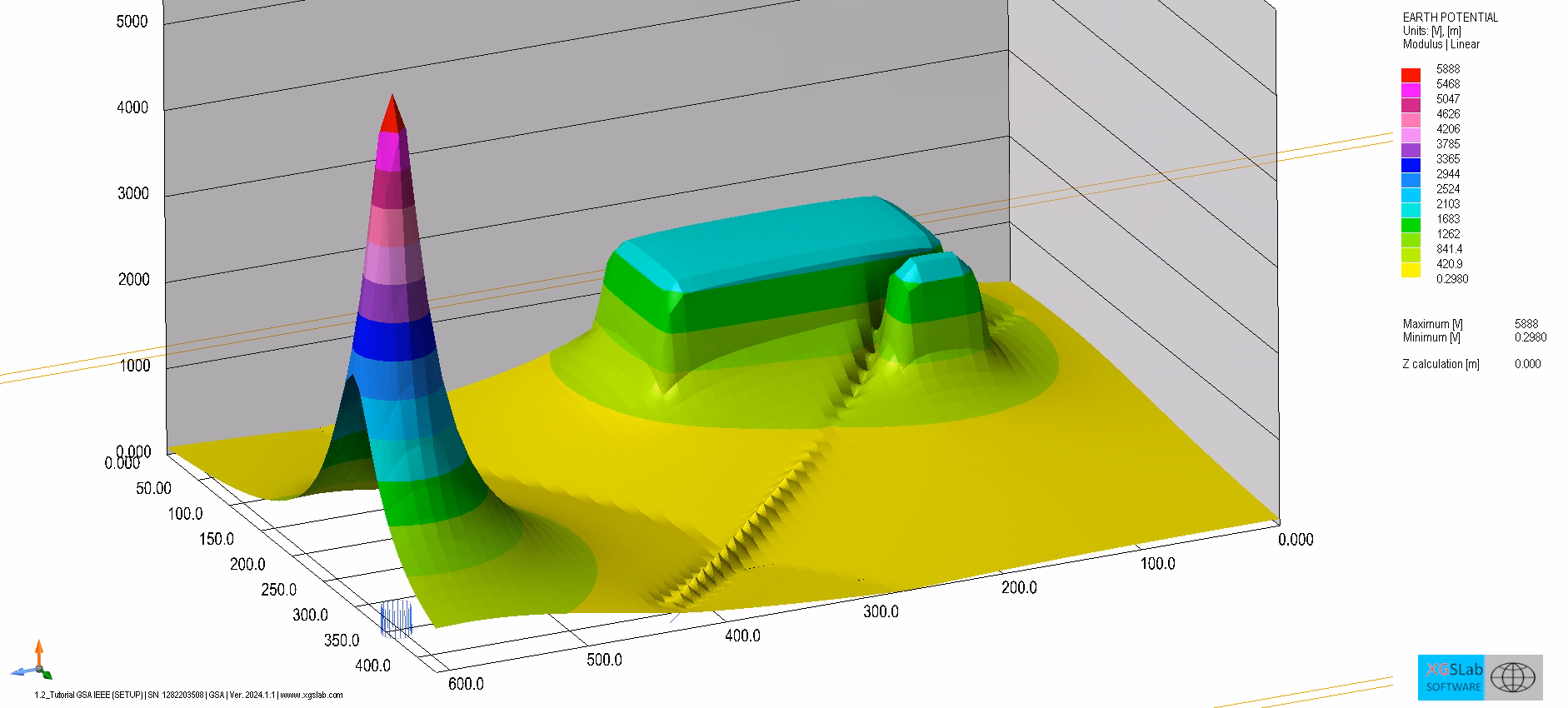

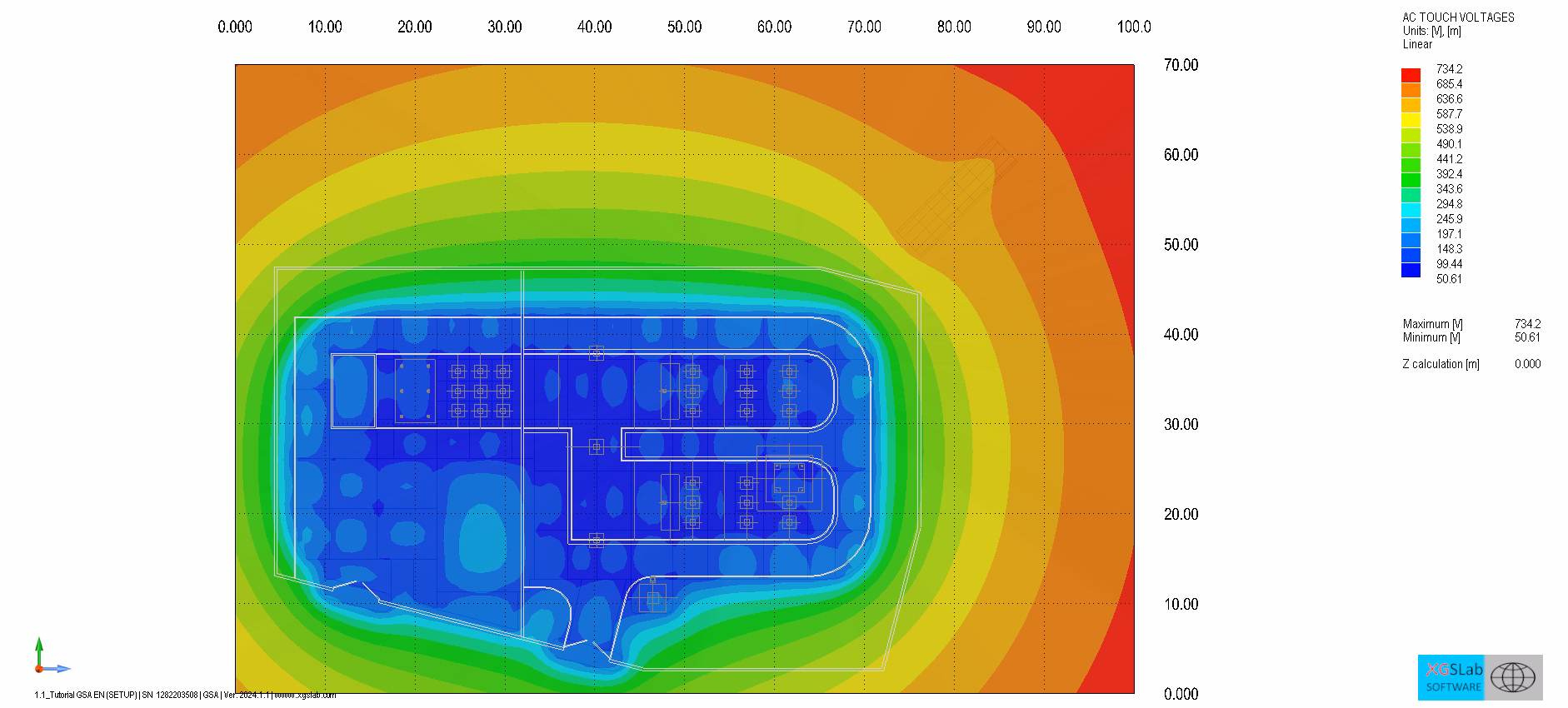

Results	GPR, touch/step voltages, current density, conductor currents, surface potential maps, dangerous points and transfer potentials.
Compliance	Safety evaluation against IEEE Std 80 / IEC-EN 50522 / IEC 60479 with mitigation aids (surface layer, additional bonds, gradient control).
Integration	CAD-friendly import/export; consistent workflow with GSA FD, XGSA FD/TD, NETS and SHIELD for end-to-end studies.
